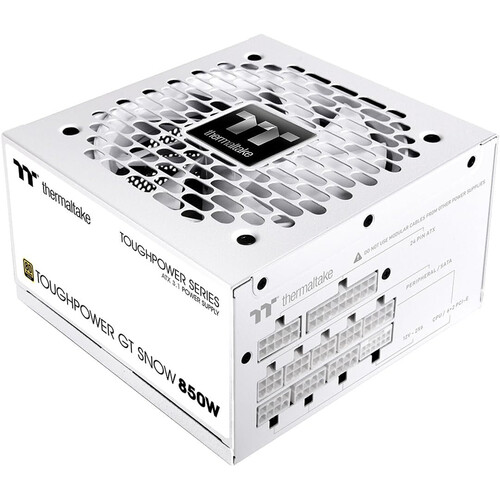

Thermaltake Toughpower GT 850W 80 PLUS Gold Power Supply (White)
Thermaltake Toughpower GT 850W 80 PLUS Gold Power Supply (White)
- ATX 3.1 Ready
- PCIe Gen 5.1 Ready
- Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
- High Amperage Single +12V Rail & High-Class Technologies
- Fully Modular Low-Profile Cables
- Built-in Industrial Grade Protection
- 80 PLUS Gold Certified
BD 51.000
متوفر في المخزون
BD 51.000
- Category:Power Supply
- SKU:74UKJUYB22360-1
متوفر في المخزون
متوفر في المخزون
- Category:Power Supply
- SKU:74UKJUYB22360-1
BD 51.000
متوفر في المخزون
- Fast Shipping
- Easy Returns
- One Year Warranty
- Payment Options
Product Documents
User Manual
Connectivity
| Total Connectors | 1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 6x 15-Pin SATA 4x 4-Pin Peripheral / Molex |
| Cable Design | Modular |
| PCIe Connector Distances | 23.6″ / 600 mm |
| SATA Connector Distances | 17.7″ / 450 mm 23.6″ / 600 mm 29.5″ / 750 mm |
| Peripheral Connector Distances | 15.7″ / 400 mm 21.7″ / 550 mm 27.6″ / 700 mm 33.5″ / 850 mm |
| ATX Connector Distance | 27.6″ / 700 mm |
| EPS Connector Distances | 21.7″ / 550 mm |
Electrical
| Total Wattage | 850 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 849.6 W |
| Max Load for +12 V | 70.8 A |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 3.6 W |
| Max Load for -12 V | 0.3 A |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A |
General
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | Yes |
Cooling
| Fan Size | 120 mm |
| Bearing Type | Hydraulic |
Physical
| Form Factor | ATX |
| Compliance | ATX v3.1 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications | BIS, BSMI, CB, CCC, CE, FCC, ICES, RCM, TUV, UKCA, cTUVus |
| Operating Conditions | -40 to 158°F / -40 to 70°C at 5 to 95% Humidity |
| Dimensions | 5.9 x 5.5 x 3.4″ / 150 x 140 x 86 mm |
Weight and Dimensions
| Weight | 2.50 kg |
|---|---|
| Dimensions | 4.92 × 11 × 8.66 in |
